Kogene provides a powerful solution
for a molecular diagnostics
System

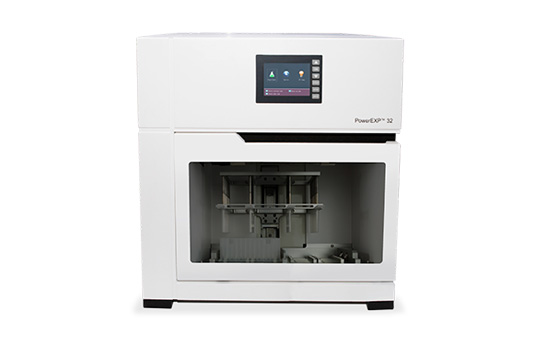

PowerEXP™ 32 NA Extraction System
The PowerEXP™ 32 NA Extraction System is fully-automated nucleic acid (NA) extractor for wide molecular diagnostics such as SARS-CoV-2, IVD, animal disease, food & halal, and pathogens. It utilizes magnetic particle-based technology to improve work efficiency and productivity. The combination of PowerPrep™ Extraction Kit EXP ensures rapid and highly purified NA from various sample types.
Features
- Simple & easy operation
- Fast NA extraction for 32 samples in 20 mins
- Efficient lysis & elution : Heating temp. up to ~ 120℃
- High reproducibility & sensitivity
- Decontamination system : UV light
- Wide application : IVD, animal disease, food & halal and pathogens

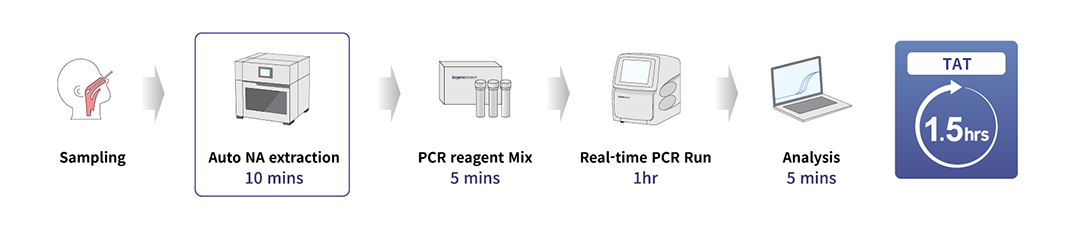

Work flow

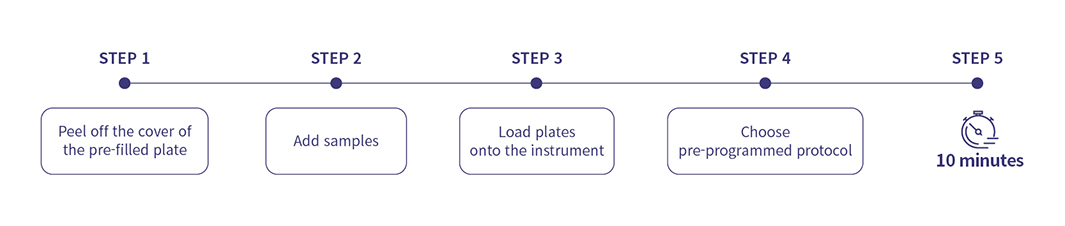

Procedure
Specification
| Items | Parameter |
|---|---|
| Processing volume | 30-1,000 μL |
| Capacity | 1-32 samples per run work |
| Collection efficiency of the magnetic particles | ≥95 % |
| Heating temperature | For cell lysis and NA elution Room temperature to 120℃ |
| Processing-mode | Multi-mode, multi-speed available |
| Reagents | Automation-ready to use kit using magnetic bead |
| Operation interface | 3.5 inch display with touch-control operation |
| Storage capacity | 15 preinstalled protocols in main unit, unlimited in pad |
| Protocol management | Create, edit, delete, protocol mode |
| Decontamination | UV light |
| Computer interface | USB |
| Network communication | Ethernet (optional) |
| Dimensions (W x L x H) | 440mm x 435mm x 445mm |
| Weight | 31.5kg |
| Power requirements | AC110±10 %/230V±10%, 50Hz/60Hz±1Hz, 600W |
| Temperatures allowed during operation | 10-40 ℃ |
| Relative humidity allowed during operation | <80 % |
Product List
| Cat No. | Product | Size | Price | Add to list |
|---|---|---|---|---|
| KE3210 | PowerEXP™ 32 | 32 samples | Request a quote |  |
Related Product
| Cat No. | Product | Size | Price | Add to list |
|---|---|---|---|---|
| E0017/S | PowerPrep™ Viral NA Extraction Kit EXP | 64/20 | Request a quote | |
| E0019/S | PowerPrep™ Pathogen NA Extraction Kit EXP | 64/20 | Request a quote | |
| RE0020/S | PowerPrep™ Universal DNA Extraction Kit EXP | 64/20 | Request a quote | |
| RE0021/S | PowerPrep™ Halal DNA Extraction Kit EXP | 64/20 | Request a quote | |
